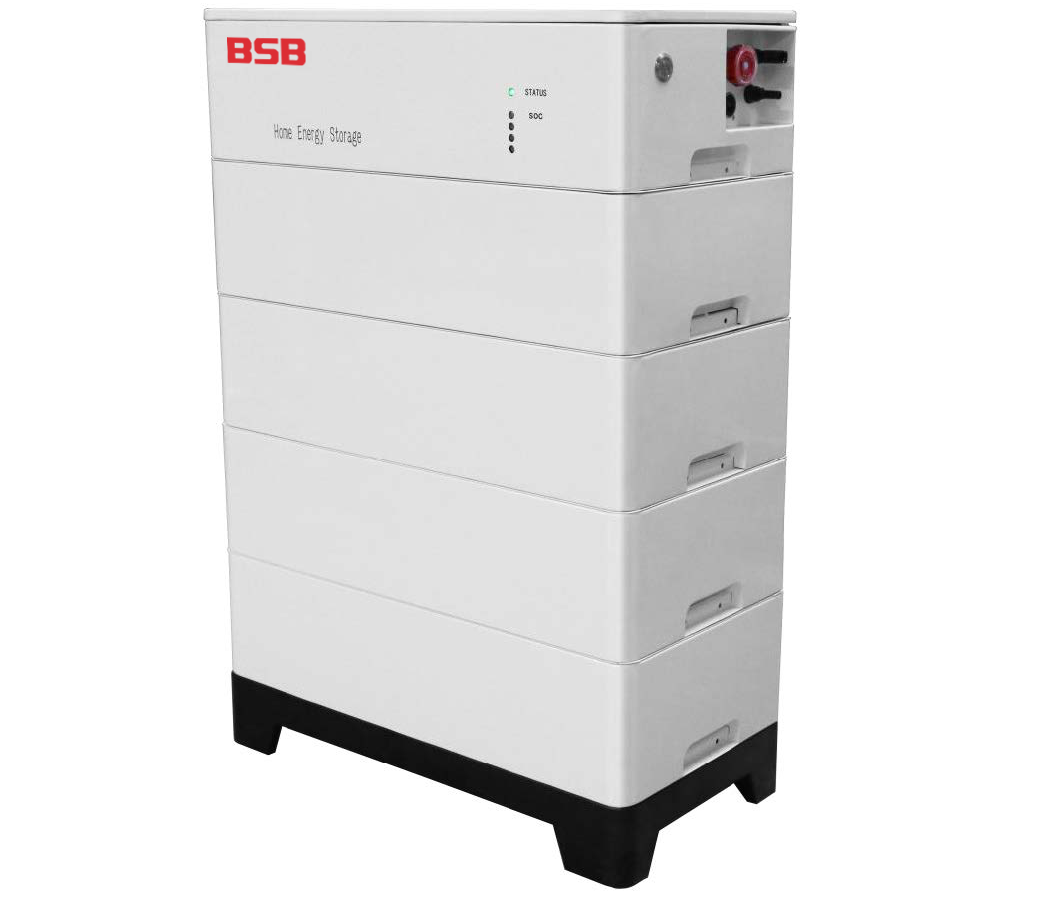

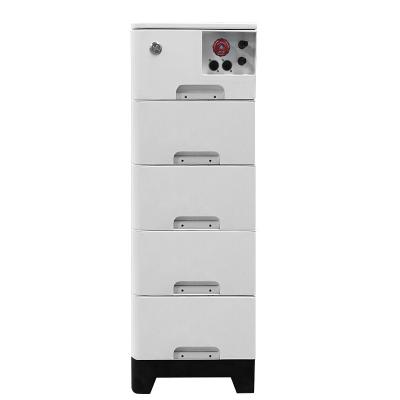

BSB 204V high voltage energy storage system custom-designed for commercial and industrial applications. Engineered with cutting-edge technology, it sets a new standard in energy storage for the modern era. This innovative system is designed to cater to the unique needs of commercial and industrial operations, offering unparalleled reliability and efficiency.
Product Features
■ Maximum output is 10KW or 20KW.
■ 1000VDC, 20 years of normal use;
■ RS485/CANbus, compatible with main brand inverters.
■ The main control cabinet Integrated DC confluence, power distribution communication and control;
Product Specifications
Model
48HLFP50-HV
48HLFP100-HV
Cell Chemistry
LiFePO4
Battery Energy
10.24kWh/20.48kWh
`Nominal Voltage
204.8V/409.6V
Nominal Capacity
50Ah
Maximum Charging Current
50A
Maximum Continuous Discharge Current
Maximum Output Power
10KW/20KW
HV Controller
1pc
Weight
108Kg/200Kg
Dimension LxDxH
560 x 270 x 850mm/560 x 270 x 1600mm
Operating Voltage Range
179.2 ~230.4V/358.4 ~460.8V
Cycle Life
6000 cycles at 80% DOD
Designed Life-span
10 years
Installation
Floor-mounting (Horizontal and stacking)
Communication
RS485/CANbus/Ethernet/WiFi
Charging Temperature Range
0~50°C
Discharge Temperature Range
-20~60°C
Enclosure Protection
IP54
Humidity
≤85%
Altitude
≤2000m
Application
In door
Inverter Choosing
On/Off single or 3 phases inverter
Heat Management
Air cooling
